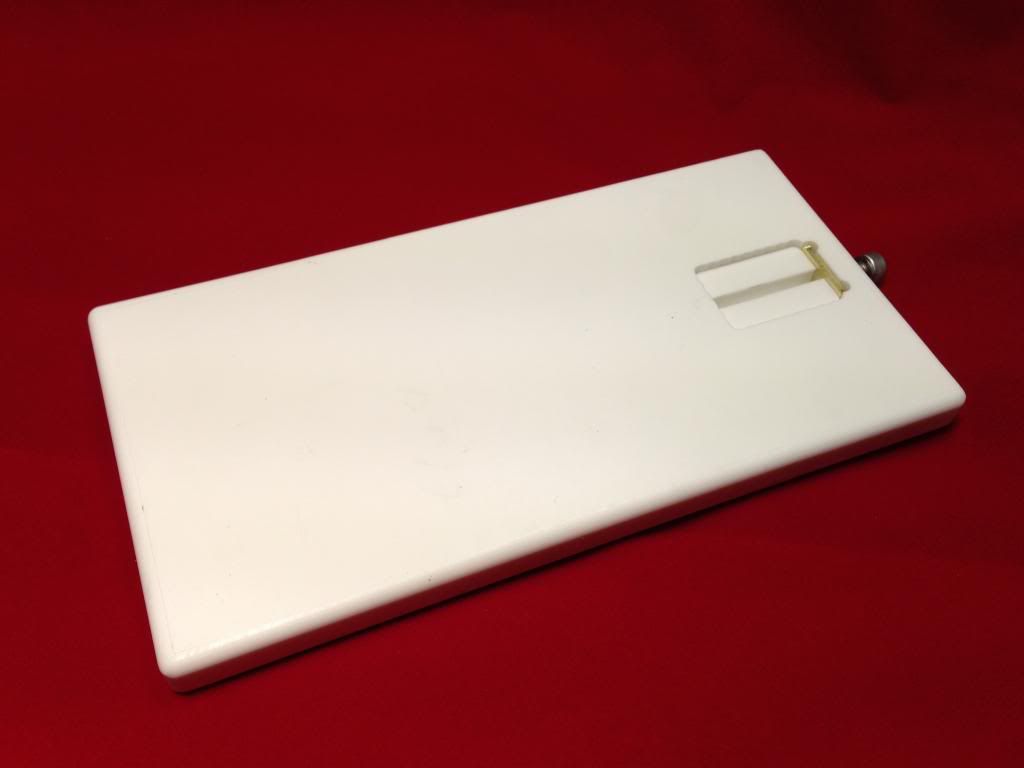

    Adjustable Backtrack guide recess block

    Rather than guess at the recess on the track you're racing on, go to a flat section on the track and just loosen the Allen bolt,
    letting the braid recess block drop down into the braid recess.

    The braid recess pc. is slightly narrower at the bottom.

    This is the only block I know off which will also easily simulate braid above the track surface.

    IE - to simulate .010" above, you put the black on a flat surface, and with the Allen screw loose,

    place a .010" washer, underneath, in the braid recess cavity.

    Taking orders now.

    Shipping in 1-2 weeks.

    $33.00 ea. - normal Backtrack discount to raceways.\





    http://i143.photobucket.com/albums/r...ps8ac55c7a.jpg

    http://i143.photobucket.com/albums/r...ps48a7ace1.jpg
    Last edited by oldweirdherald; 02-14-2013 at 04:02 AM. Reason: added images
    "Get Yourself Retrofied"
    Chicagoland Raceway
    17B West Ogden Ave.
    Westmont,Il. 60559
    Phone-708-203-8003
    mikeswiss86@hotmail.com

    Check out Chicagoland Raceway on facebook.

  2. #2
    Join Date
    Apr 2007
    Location
    St. Catharines, Ontario Canada
    Posts
    265
    Very clever!
